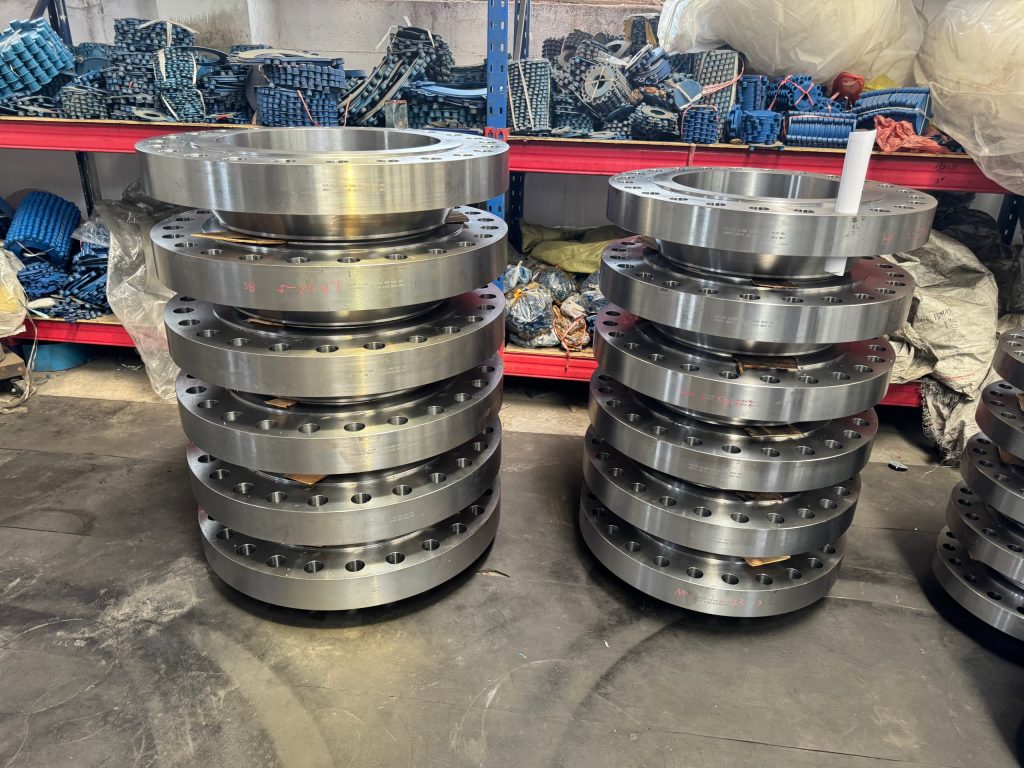

ASTM A694 F65 ASME B16.5 WN RF High-Pressure Corrosion-Resistant Flange

In high-pressure and highly corrosive environments such as petroleum, natural gas, chemical, and marine engineering, the integrity and stability of piping systems are closely related to reliable flange connection components. The ASME B16.5 ASTM A694 F65 Weld Neck Raised Face flange is precisely designed as a high-performance connecting element to withstand high-pressure and corrosive service conditions, serving as a key component in ensuring the stable operation of piping systems.

Chemical composition requirements of ASTM A694 F65 Flanges

ASTM A694 F65 Flanges(High-yield carbon steel flanges)

	C	Mn	P	S	Si
ASTM A694 F42	0.26-0.265	1.60-1.64	0.025-0.030	0.025-0.030	0.15-0.35
ASTM A694 F52	0.26-0.265	1.60-1.64	0.025-0.030	0.025-0.030	0.15-0.35
ASTM A694 F60	0.26-0.265	1.60-1.64	0.025-0.030	0.025-0.030	0.15-0.35
ASTM A694 F65	0.26-0.265	1.60-1.64	0.025-0.030	0.025-0.030	0.15-0.35

An ASTM A694 F65 flange is a component used to connect pipes, valves, pumps, and other equipment to form a piping system. It allows for easy cleaning, inspection, or modification. At the same time, ASTM A694 F65 flanges are renowned for their excellent mechanical properties, including high tensile strength, yield strength, and impact toughness. These characteristics make them suitable for application under demanding conditions such as high pressure and high temperature. The flange is manufactured from ASTM A694 F65 material, which contains alloying elements such as chromium and molybdenum, with strictly controlled carbon content. This gives it exceptional strength and high toughness. Furthermore, these chemical elements significantly enhance the flange’s corrosion resistance and weldability. Simultaneously, its extremely low phosphorus and sulfur content reduces the material’s susceptibility to embrittlement during heat treatment and welding processes, making it applicable across a wide temperature range from cryogenic to elevated temperatures.

ASTM A694 F65 Flanges Mechanical property

Element	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
ASTM A694 F65	415	450	20 %

ASTM A694 F65 flanges are made from high-strength low-alloy steel, possessing high yield strength and tensile strength. The material undergoes normalizing and tempering or quenching and tempering heat treatments. Compared to ordinary carbon steel flanges, ASTM A694 F65 offers superior impact strength and fatigue resistance. Additionally, surface treatment processes such as galvanizing can be applied to enhance the flange’s corrosion resistance, as the zinc coating helps mitigate corrosion. Consequently, their maintenance and repair costs are relatively low, offering good cost-effectiveness.

ASME B16.5 A694 F65 flanges are widely used in industries including power generation, natural gas processing, pharmaceuticals, petrochemicals, and offshore oil drilling. They are suitable for oil and gas extraction and transportation systems (including sour service environments), offshore platforms and subsea pipeline systems, and other industrial connection scenarios that require high strength, high sealing integrity, and corrosion resistance.

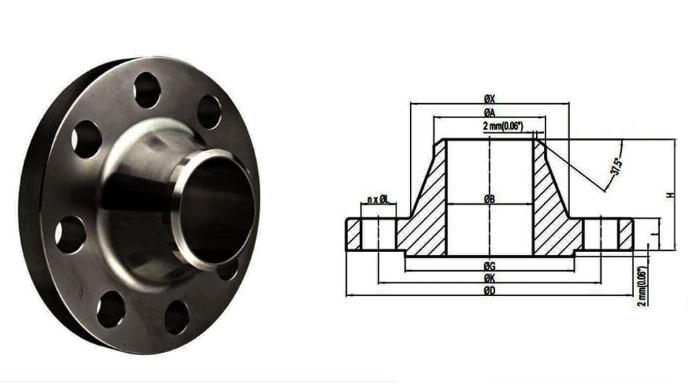

A694 Gr F65 Weld Neck Flange Dimensions

Size (NPS) in Inches	NPS (Normal Pipe Size) Size in Millimeter	Outer Diameter For (O.D.)	Thickness Of Weld Neck Flange	Hub Outer Diameter	Weld Neck Outer Diameter	Length Of ASME B16.5 Welding Neck	Daimeter Of WN Bore	Diameter Of RF (Raised Face)	Raised Face (RF) Height	PCD	Face Of Weld
		A	B	C	D	E	F	G	H	I	J
1/2	15	90	9.6	30	21.3	46	–	34.9	2	60.3	1.6
3/4	20	100	11.2	38	26.7	51		42.9	2	69.9	1.6
1	25	110	12.7	49	33.4	54		50.8	2	79.4	1.6
1 1/4	32	115	14.3	59	42.2	56		63.5	2	88.9	1.6
1 1/2	40	125	15.9	65	48.3	60		73	2	98.4	1.6
2	50	150	17.5	78	60.3	62		92.1	2	120.7	1.6
2 1/2	65	180	20.7	90	73	68		104.8	2	139.7	1.6
3	80	190	22.3	108	88.9	68		127	2	152.4	1.6
3 1/2	90	215	22.3	122	101.6	70		139.7	2	177.8	1.6
4	100	230	22.3	135	114.3	75		157.2	2	190.5	1.6
5	125	255	22.3	164	141.3	87		185.7	2	215.9	1.6
6	150	280	23.9	192	168.3	87		215.9	2	241.3	1.6
8	200	345	27	246	219.1	100		269.9	2	298.5	1.6
10	250	405	28.6	305	273	100		323.8	2	362	1.6
12	300	485	30.2	365	323.8	113		381	2	431.8	1.6
14	350	535	33.4	400	355.6	125		412.8	2	476.3	1.6
16	400	595	35	457	406.4	125		469.9	2	539.8	1.6
18	450	635	38.1	505	457.2	138		533.4	2	577.9	1.6
20	500	700	41.3	559	508	143		584.2	2	635	1.6
24	600	815	46.1	663	610	151		692.2	2	749.3	1.6
