ASTM A860 WPHY65 Large-Diameter Pipe Cap
Specifications at a Glance:

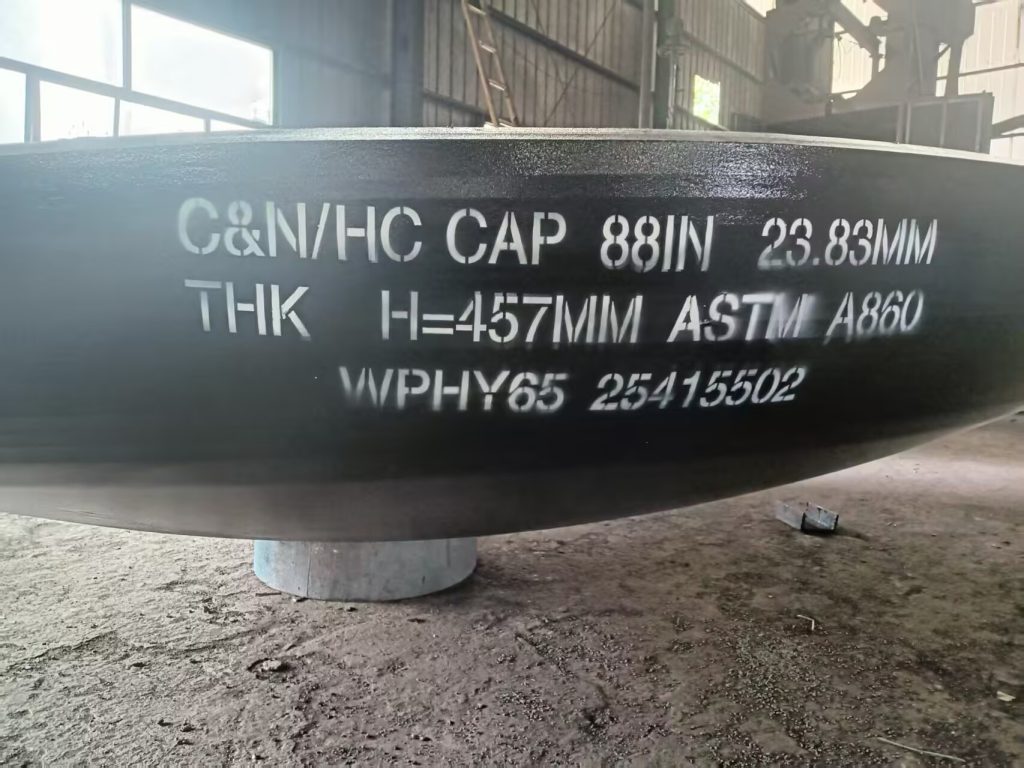

88 IN O.D. · 23.83 MM THK · H = 457 MM · ASTM A860 Grade WPHY65
A Fitting Built at the Limits of Large-Bore Fabrication
Not every pipeline project fits neatly into a catalog. When a project calls for an 88-inch pipe cap with close to an inch of wall steel, standard production logic no longer applies — you’re in the territory of purpose-built forming, careful heat treatment management, and dimensional checks that leave no margin for rework in the field.
This is a look at what goes into that kind of component: the governing material standard, what makes WPHY65 the grade of choice for demanding high-pressure service, and how each piece is verified and protected before it ships.
1. Product Highlights
Exceptional size. At 88 inches nominal outside diameter, this cap sits firmly in the large custom-fabrication tier. Components at this scale require purpose-designed forming tooling, coordinated hot-working parameters, and close monitoring throughout heat treatment to maintain uniform mechanical properties across the full cross-section.
Substantial wall. A 23.83 mm wall thickness is not simply a dimensional specification — it translates directly to pressure-containing capacity and resistance to external loading. Combined with the WPHY65 yield strength floor, this cap is engineered to handle what most pipeline closures never encounter.
Proportioned depth. The H = 457 mm cap height follows the dimensional geometry required for large-bore end closures, ensuring correct fit-up at the pipe-to-cap junction without secondary machining.

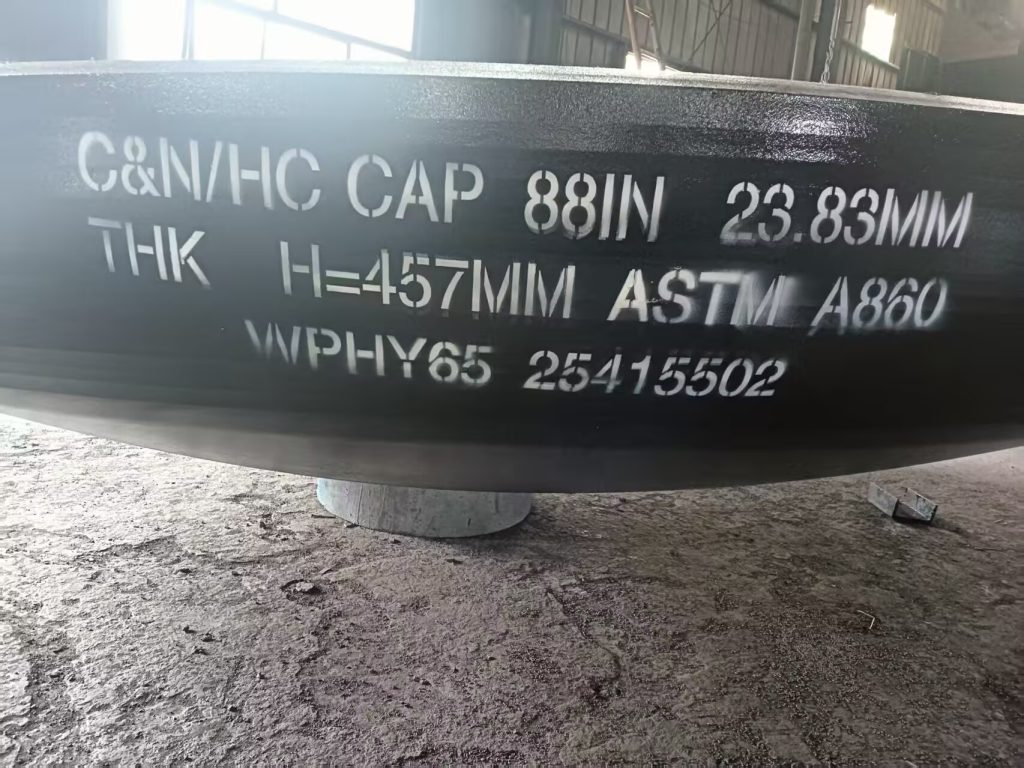

Full stenciling per ASTM requirements. Every piece bears a permanently applied stencil identifying the manufacturer, material grade, heat number, nominal size, wall thickness, and cap depth — all traceable at any point in the supply chain.

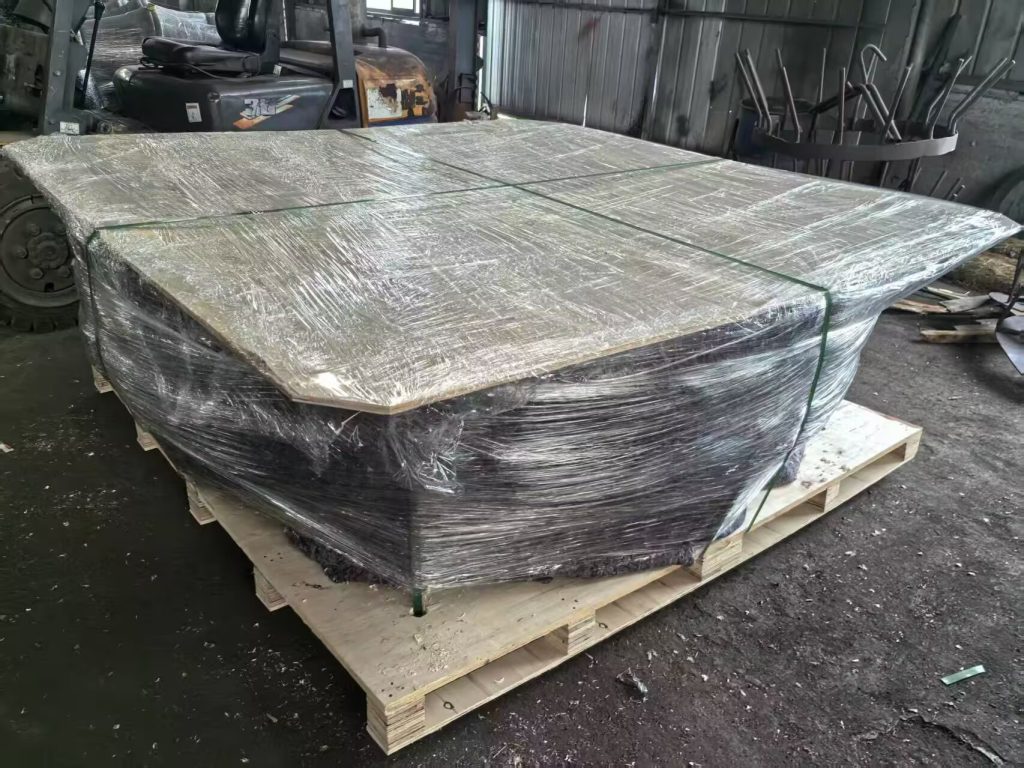

Protective multi-layer packaging. Finished caps are individually wrapped in anti-corrosion film, internal bore openings are covered, and each assembly is secured to a timber base pallet with steel banding. External packaging labeling mirrors the fitting stamp, so warehouse receipt and site inspection are straightforward.
2. Standard Overview: ASTM A860
ASTM A860 is the material specification for Wrought High-Strength Low-Alloy (HSLA) Steel Butt-Welding Fittings. It defines chemical, mechanical, and testing requirements for fittings intended for use in pressure piping systems where higher yield strength than conventional carbon steel (such as ASTM A234) is required.
Scope and applicability:
- Covers wrought HSLA steel fittings including caps, elbows, tees, and reducers produced by seamless or welded (ERW, SAW) methods.
- Addresses seven yield-strength grades — WPHY42, WPHY46, WPHY52, WPHY56, WPHY60, WPHY65, and WPHY70 — with the suffix number representing the minimum yield in ksi.
- Dimensional requirements are governed by the applicable dimensional standard; MSS SP-75 is the primary reference for WPHY-grade fittings, with ASME B16.9 applicable where coverage exists.
- While the standard addresses room-temperature service primarily, supplementary notch toughness requirements (Charpy V-notch) can be incorporated by purchase agreement for installations in low-temperature or impact-sensitive environments.
- Welded fittings must meet radiographic or ultrasonic acceptance criteria for weld seams — both methods are recognized under the standard.
The HSLA chemistry approach distinguishes this specification from conventional carbon steel fittings: strength is achieved through microalloying additions (vanadium, columbium/niobium, titanium) and controlled thermomechanical processing rather than through simple carbon and manganese increases, which preserves weldability and ductility.
3. Grade WPHY65 — Technical Profile
Service Context and Temperature Range
WPHY65 is suited to high-pressure ambient and moderate-temperature service in aboveground and buried pipeline systems. It is not a designated cryogenic grade, but its fine-grain microstructure — resulting from normalizing, quench-and-temper, or controlled-rolled plate processing — provides a favorable ductile-to-brittle transition behavior compared to coarser-grained materials.
When the purchase order specifies supplementary Charpy V-notch requirements (test temperature, specimen orientation, and minimum absorbed energy to be agreed), WPHY65 can be adapted to service in cold climates without compromising yield strength.
Size Range
ASTM A860 WPHY65 is not limited to off-the-shelf catalog sizes. Fittings are available from standard small-bore dimensions through large and custom diameters. The 88-inch example presented here represents a scale requiring purpose-engineered fabrication sequences, demonstrating that WPHY65 material performance is achievable even at dimensions far beyond typical pipeline catalog offerings.
Typical Application Sectors
| Industry | Representative Use |
|---|---|
| Oil & gas transmission | Trunk line end closures, compressor station headers, terminal piping |
| Petrochemical processing | High-pressure reactor and separator inlet/outlet closures |
| Power generation | Main steam and feedwater piping, boiler interconnections |
| Water infrastructure | Large-diameter high-pressure transmission mains |
| Offshore facilities | Subsea and topside high-yield piping systems |
4. Chemical Composition Requirements
The following table reflects heat-analysis (ladle analysis) limits for ASTM A860 Grade WPHY65. Product (check) analysis tolerances are governed by ASTM A960.
| Element | Maximum (wt%) | Notes |
|---|---|---|
| Carbon (C) | 0.22 | — |
| Manganese (Mn) | 1.65 | — |
| Phosphorus (P) | 0.030 | — |
| Sulfur (S) | 0.030 | — |
| Silicon (Si) | 0.45 | — |
| Nickel (Ni) | 0.50 | — |
| Chromium (Cr) | 0.30 | — |
| Molybdenum (Mo) | 0.15 | — |
| Vanadium (V) | 0.08 | Combined Cb + V + Ti ≤ 0.15% |
| Columbium / Niobium (Cb) | 0.05 | Combined Cb + V + Ti ≤ 0.15% |
| Copper (Cu) | 0.35 | — |
| Titanium (Ti) | 0.04 | Combined Cb + V + Ti ≤ 0.15% |
The combined content of Columbium + Vanadium + Titanium shall not exceed 0.15 wt%. This limit protects against excess precipitation hardening and ensures consistent heat-to-heat weldability.
5. Mechanical Properties
Tensile specimens are taken from the fitting body or a representative test coupon from the same heat and heat-treatment batch.
| Property | Requirement |
|---|---|
| Tensile Strength, min | 530 MPa [77 ksi] |
| Yield Strength (0.2% offset), min | 448 MPa [65 ksi] |
| Elongation in 2 in. [50 mm], min | 20% |
| Elongation in 8 in. [200 mm], min | 17% |
For fitting geometries where standard round bar specimens cannot be machined, a sub-size specimen with proportionally reduced gauge length is permitted; elongation requirements are adjusted per formulas in the standard. For heavy-wall products such as this 23.83 mm cap, full-thickness specimens are standard practice.
6. Physical Properties — Reference Values
The following values are representative for wrought HSLA carbon-manganese steel in the WPHY65 composition range. They are provided as engineering reference; exact values vary with heat chemistry and processing condition.
| Property | Typical Value |
|---|---|
| Density | 7.85 g/cm³ (0.284 lb/in³) |
| Melting Range | 1,420 – 1,460 °C (2,590 – 2,660 °F) |
| Elastic Modulus (Young’s Modulus) | ~200 GPa (29,000 ksi) |
| Poisson’s Ratio | 0.29 – 0.30 |
| Thermal Conductivity (at 20°C) | ~49 W/(m·K) |
| Coefficient of Thermal Expansion (20–200°C) | ~12 × 10⁻⁶ /°C |
| Specific Heat | ~490 J/(kg·K) |
| Brinell Hardness (typical, post heat treatment) | 160 – 240 HBW |
7. Inspection, Testing, and Certification
Mandatory Requirements
Chemical certification: A mill test report confirming heat analysis composition is required for every lot. Product analysis can be requested by the purchaser.
Tension test: One test per heat per heat-treatment lot. Results must meet the minimum tensile and yield strength values listed above.
Hydrostatic test or NDE alternative: Every fitting either passes a hydrostatic pressure proof test or undergoes 100% radiographic or ultrasonic examination — the manufacturer may select the method unless otherwise specified in the purchase order.
Visual and dimensional examination: All surfaces are checked against acceptance criteria for injurious surface defects. Dimensions are verified against the applicable dimensional standard (MSS SP-75 or ASME B16.9/B16.28 as applicable).
Marking: Permanent stenciling per ASTM A960 — manufacturer’s identification, WPHY65, heat number, nominal size, wall thickness, and H dimension for caps.
Supplementary Options (Order-Specified)
| Supplement | Purpose |
|---|---|
| Charpy V-notch impact testing | Confirm notch toughness at specified temperature |
| Radiographic examination | Full volumetric examination of weld seams in welded fittings |
| Ultrasonic examination | Base metal and weld zone integrity verification |
| Hardness testing | Confirm heat-treatment consistency (Brinell or Rockwell) |
| PWHT documentation | Where post-weld heat treatment is performed or required |
Process Notes for Large-Diameter Fittings
For components at 88-inch scale, thermocouple-monitored heat treatment is standard practice to confirm uniform soak temperature across the full wall section. Dimensional verification of the cap profile (depth H, bore diameter, and wall thickness at multiple points around the circumference) follows heat treatment and before any surface finishing.
C&N / Hongcheng Pipe Fittings Limited
Large-diameter fittings are a precision undertaking from the first heat to the last strap on the pallet. At C&N (Hongcheng Pipe Fittings Limited), manufacturing traceability runs from incoming material certification through forming records, heat treatment logs, NDT reports, dimensional inspection, and final marking — every step documented and tied to the heat number that goes on the fitting.
For the 88-inch WPHY65 caps shown here, our approach to packaging reflects the same discipline applied to production. Each cap leaves our facility with:
- Corrosion-inhibiting wrap on all external surfaces and the bore
- End-cap protection on bore openings to prevent ingress
- Timber pallet base suitable for forklift handling and container loading
- Steel banding with load distribution bars where required by fitting weight
- Outer packaging clearly labeled with grade, size, heat number, and order reference
We work with project teams at the inquiry stage — clarifying dimensional drawings, reviewing heat treat and test requirements, and discussing packaging and logistics constraints before production starts. That front-end coordination is what keeps large, one-off fittings from becoming field surprises.
If your project involves ASTM A860 WPHY65 fittings — whether 88 inches or otherwise — we’re straightforward to reach.
